Ceiling Fan Wiring Diagram - Wire A Ceiling Fan - I got my handy multimeter from college and tested all wire combination and wire/switch combinations.
Ceiling Fan Wiring Diagram - Wire A Ceiling Fan - I got my handy multimeter from college and tested all wire combination and wire/switch combinations.. Harbor breeze ceiling fan wiring. The diagram above looks complicated but it's really not. Just focus on one circuit one at a time and it will fall right into place. This diagram shows a fan controlled by one switch with power coming. You may like to see ceiling fan regulator circuit to controlling fan speed.
In this diagram, the black wire of the ceiling wire is for the fan and the blue wire is for the light kit. Note that the blue wire is connected to the black fan wire. The ceiling fan is associate integral a part of each house and trade. Pick the diagram that is most like the scenario you are in and see if you can wire up your fan! Fan speed would need to be controlled by a pull chain or in some newer fans a wireless remote.
Fantasia Fans Fantasia Ceiling Fans Wiring Information from theceilingfancompany.co.uk You may like to see ceiling fan regulator circuit to controlling fan speed. Since ceiling fan wiring may vary by brand and model we highly recommend you refer to your specific ceiling fan manual before installation. Ceiling fan motor 3 wire capacitor diagram 5 wire fan capacitor diagram how to wire a speed control switch for ceiling fan how to replace the capacitor in ceiling fan with speed controller. We have diagrams for all scenarios. During this article, we have a tendency to discuss the wiring of ceiling fans and a circuit diagram of ceiling fans. This page contains wiring diagrams for household fans including: The ceiling fan is associate integral a part of each house and trade. The wiring arrangements for electrical source at the switch and at the ceiling fixture.

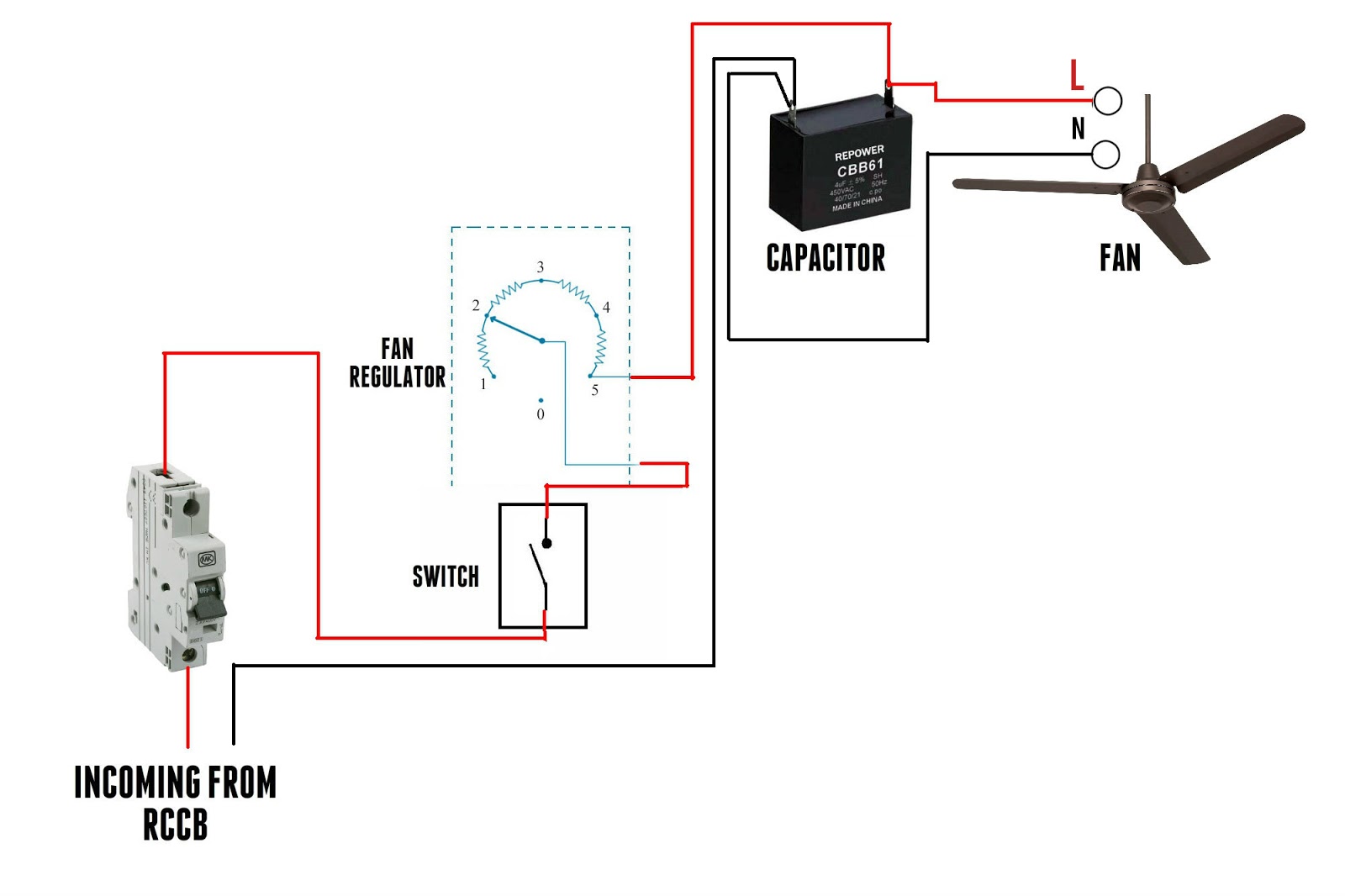

Fan regulator wiring diagram हमारी वेबसाईट website www.shelectricalwork.com instragram.
Ceiling fan wiring diagramceiling fan installationceiling fan mounting bracketceiling fan light switchceiling fan color code wire black red bleu wight. This might seem intimidating, but it does not have to be. The line voltage enters the switch outlet box and the hot wire will connect to every switch. Black (fan hot), blue (light hot), white (neutral), and green (ground). Fan ceiling lights often use multiple bulbs, which are bright at full power. A wide variety of ceiling fan wiring diagram options are available to you, such as certification, type. Capacitor connection diagram of ceiling fan. We have diagrams for all scenarios. Ceiling fan motor 3 wire capacitor diagram 5 wire fan capacitor diagram how to wire a speed control switch for ceiling fan how to replace the capacitor in ceiling fan with speed controller. You can interchange or replace the color of live wire if you have multiple devices connected though the same. Ceiling fan switch wiring diagrams 1. Ground connection diagram is shown separately. I would like to wire two ceiling fans — the power comes into the box first — i would also like to have two separate switches for lights and fans.
In this diagram, the black wire of the ceiling wire is for the fan and the blue wire is for the light kit. Ceiling fan wiring diagramceiling fan installationceiling fan mounting bracketceiling fan light switchceiling fan color code wire black red bleu wight. Alibaba.com offers 1,081 ceiling fan wiring diagram products. The diagram above looks complicated but it's really not. Harbor breeze ceiling fan wiring.
Monte Carlo Ceiling Fan Wiring Diagram Wiring Diagram Mind Note B Mind Note B Agriturismoduemadonne It from www.untpikapps.com Different scenarios for installing a ceiling fan require different ceiling fan wiring diagrams. Just focus on one circuit one at a time and it will fall right into place. Harbor breeze ceiling fan wiring. The ceiling fan has capacitor begin electrical device run motor. To wire a ceiling fan we first have to know the options available on the fan. I got my handy multimeter from college and tested all wire combination and wire/switch combinations. Usually the hot wire to the fan in a fan/light combination kit is black while the blue wire is usually for light. To connect your ceiling fan to existing wires, make sure that you have the right fan hardware and cut off the electricity leading to those wires.
Mount your bracket onto the ceiling and hang the fan on the bracket.
Follow the diagram below if you have access to only a single wall switch when installing your ceiling fan. For some, that will be any combination from no switches (using the included pull chains for powering the fan and/or light) and having separate switches for the light and fan. Ceiling fans with lights typically have four wires: Usually the hot wire to the fan in a fan/light combination kit is black while the blue wire is usually for light. Mount your bracket onto the ceiling and hang the fan on the bracket. During this article, we have a tendency to discuss the wiring of ceiling fans and a circuit diagram of ceiling fans. Choose the one that is right for you. Ceiling fan wiring diagram ceiling fan installation ceiling fan mounting bracket ceiling fan light switch ceiling fan color code wire. Black (fan hot), blue (light hot), white (neutral), and green (ground). This page has a comprehensive list of the harbor breeze ceiling fan manuals that come with their products. Fan regulator wiring diagram हमारी वेबसाईट website www.shelectricalwork.com instragram. Any diagrams would be helpful. Note that the blue wire is connected to the black fan wire.
This page contains wiring diagrams for household fans including: Usually the hot wire to the fan in a fan/light combination kit is black while the blue wire is usually for light. The main thing to consider wiring a ceiling fan and light is determining how you want that fan to be controlled. Follow the diagram below if you have access to only a single wall switch when installing your ceiling fan. Configuring the light to work on its own switch allows you to use a home automation dimmer switch to vary the.
Diagram Ceiling Fan Capacitor Wiring Diagram Internal Full Version Hd Quality Diagram Internal Thewiringgroup Ocstorino It from i.ytimg.com The ceiling fan has capacitor begin electrical device run motor. I got my handy multimeter from college and tested all wire combination and wire/switch combinations. Follow the diagram below if you have access to only a single wall switch when installing your ceiling fan. With the diagrams listed above, you can wire a ceiling fan with either. Capacitor connection diagram of ceiling fan. Fan speed would need to be controlled by a pull chain or in some newer fans a wireless remote. I've installed a ceiling fan before when there was no existing fan in place and it seemed quite simple. Harbor breeze ceiling fan wiring.
Choose the one that is right for you.
I've installed a ceiling fan before when there was no existing fan in place and it seemed quite simple. This page has a comprehensive list of the harbor breeze ceiling fan manuals that come with their products. The main thing to consider wiring a ceiling fan and light is determining how you want that fan to be controlled. Since ceiling fan wiring may vary by brand and model we highly recommend you refer to your specific ceiling fan manual before installation. Fan regulator wiring diagram हमारी वेबसाईट website www.shelectricalwork.com instragram. Ceiling fan switch wiring diagrams 1. With the diagrams listed above, you can wire a ceiling fan with either. I got my handy multimeter from college and tested all wire combination and wire/switch combinations. Just focus on one circuit one at a time and it will fall right into place. Ceiling fan and light switch wiring diagram : Ground connection diagram is shown separately. Ceiling fan wiring diagram ceiling fan installation ceiling fan mounting bracket ceiling fan light switch ceiling fan color code wire. This page contains wiring diagrams for household fans including:
